铭威实业 is a well-known supplier and manufacturer of high-quality Control Cables in India. Our range of Control Cables is specifically designed for carrying signals of low power strength and can operate effectively under severe temperature conditions. These cables are widely used in industrial applications, electrical distribution systems such as sub-stations, generating stations, indoor and outdoor projects, heaters, boilers, and can also be exposed to oil, chemicals, and solvents.

We offer a wide range of Control Cables, including Unarmoured Cables and Flexible Control Cables, which are customizable as per the specifications provided by our clients. Our team of experts ensures that every cable that we manufacture meets the international quality standards and is tested for durability and efficiency.

We take pride in being one of the leading Control Cables Suppliers in 中国, providing customized solutions to meet the unique needs of our clients. With our commitment to excellence, we have earned the trust and loyalty of our customers, and we strive to continue providing them with the best products and services.

铭威实业是印度知名的高质量控制电缆供应商和制造商。我们的控制电缆系列专为传输低功率信号而设计，能够在恶劣的温度条件下有效工作。这些电缆广泛用于工业应用、配电系统，如变电站、发电站、室内和室外工程、加热器、锅炉，也可能暴露于油、化学品和溶剂中。

我们提供各种控制电缆，包括无铠装电缆和柔性控制电缆，可根据客户提供的规格进行定制。我们的专家团队确保我们制造的每一根电缆都符合国际质量标准，并经过耐用性和效率测试。

我们为自己是以下领域的领先控制电缆供应商之一而感到自豪中国，提供定制的解决方案来满足我们客户的独特需求。凭借我们对卓越的承诺，我们赢得了客户的信任和忠诚，我们努力继续为他们提供最好的产品和服务。

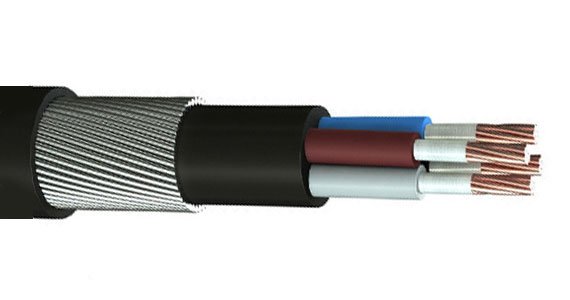

L.V. PVC Insulated Control Cables Up to & Including 1.1 KV.
VOLTAGE :- These cables can be used on AC Voltage up to & including 1100 V or DC Up to & including 1500 V.
Size :- 1.5 Sq. mm. & 2.5 Sq. mm. up to 61 Cores in Control Cable.
CONDUCTOR :- Annealed Bare /Tinned Electrolytic Copper / Aluminum Conductor conforming to IS:8130:1984.
INSULATION :- Conductor are insulated with PVC Compound as per IS:5831:1984.

1.1 KV及以下低压聚氯乙烯绝缘控制电缆。
电压:-这些电缆可用于高达1100伏的交流电压或高达1500伏的DC
尺寸:- 1.5平方英尺。2.5平方英尺。控制电缆最多61芯。
导体:符合IS:8130:1984的退火裸/镀锡电解铜/铝导体。
绝缘:-根据IS:5831:1984，导体用聚氯乙烯化合物绝缘。

COLOR OF CORES :- At Relemac Technologies, we colour our cores per IS:1554 (Pt-I): 1988. The colour scheme we use is:
2 Cores – Red and Black
3 Cores – Red, Blue and Yellow
3 ½ and 4 Core – Red, Blue, Yellow, and Black. (Note: there is Reduced Neutral Core for 3 ½ Core Control Cables)
芯的颜色:-在Relemac Technologies，我们根据IS:1554 (Pt-I): 1988对芯进行着色。我们使用的配色方案是:
2个内核-红色和黑色
3个核心-红色、蓝色和黄色
3芯和4芯-红色、蓝色、黄色和黑色。(注:3芯控制电缆有减少的中性芯)

In the event a cable should need to exceed five cores, we use the following:
如果电缆需要超过五芯，我们使用以下方法:

Two adjacent (counting and direction cores) in each layer will be colour Yellow, Blue, and remaining cores will be colour Gray. Cores can also be identified by numbers that are clearly printed on cores of the same colour. This makes it much easier to identify various cores that may be bundled.
每层中两个相邻的(计数和方向芯)将为黄色、蓝色，其余的芯为灰色。芯也可以通过清晰地印在相同颜色的芯上的数字来识别。这使得识别可能被捆绑的各种核心变得容易得多。

LAYING Of CORES :- Cores are laid up with a suitable lay. The Final layer direction shall be kept right hand lay.
芯线的铺设:芯线以合适的捻距铺设。最终铺设方向应保持右手铺设。

INNER SHEATH :- The Inner Sheath is applied over laid up of cores by extrusion/wrapping of thermoplastic material.The Insulation, Inner Sheath can be HR PVC, FRLS PVC or FRHF Compound depending upon their application.
内护套:通过挤出/包裹热塑性材料，将内护套施加在层叠的芯上。绝缘内护套可以是HR PVC、FRLS PVC或FRHF复合材料，这取决于它们的应用。

ARMOURING :- We apply our high-quality armoring over the inner sheath. This armoring may consist of either wires of galvanized round steel or galvanized steel trips (flat) all of which will conform to IS:3975.
铠装:-我们在内护套上使用高质量的铠装。这种铠装可由镀锌圆钢或镀锌钢条(扁平)组成，所有这些都符合IS:3975。

Please Note: We provide round wire armoring when the calculated diameter (under the armor) is 13.0 mm. When the calculated diameter is more than this, we use either steel strip or round wire, whichever best suits the application for the control cable.
请注意:当计算直径(在铠装下)为13.0 mm时，我们提供圆钢丝铠装。当计算直径大于13.0mm时，我们使用钢带或圆钢丝，以最适合控制电缆应用的为准。

OUTER SHEATH :- A final covering of PVC Compound, conforming to IS:5831:84, is applied over Armoring in case of Armored Cable or over Inner Sheath in case of Unarmored Cable, called as “Outer Sheath”.
外护套:符合IS:5831:84的聚氯乙烯化合物的最后一层覆盖物，如果是铠装电缆，则覆盖在铠装层上；如果是非铠装电缆，则覆盖在内护套上，称为“外护套”。

The Insulation,outer sheath can be HR PVC, FRLS PVC or FRHF Compound depending upon their application.
绝缘外护套可以是HR PVC、FRLS PVC或FRHF复合材料，这取决于它们的应用。

CURRENT RATING :- e.g. Current Carrying Capacity of these cables are as per IS:3961{Pt-II) : 1967.
额定电流:-例如，这些电缆的载流量符合IS:3961{Pt-II) : 1967。

STANDARD SPECIFICATIONS :- IS 1554:1988 (PART -1),BS:6346:1989,IEC 227-I,III
标准规范:- IS 1554:1988(第一部分)，BS:6346:1989，IEC 227-I，III

QUALITY ASSURANCE :- At 铭威 we understand how important your cables are to your operations. We understand that you deserve the very best when it comes to quality products and superior customer service. Because we understand these principles, we make every effort possible to develop and implement only the finest Power Flexible Armoured Control Cables available on the market today. To ensure that all Relemac Flexible Power control cables (as well as our other cables) meet the highest standards in quality, we subject them to a rigorous series of test in our own state-of-the-art lab. In addition, each of our control cables is checked and inspected as it is being produced. This allows us to catch problems before they make it to our valued customers.
质量保证:-在铭威我们了解您的电缆对您的运营有多么重要。我们知道，当谈到高质量的产品和卓越的客户服务时，您应该得到最好的。因为我们了解这些原则，所以我们尽一切努力开发和实施当今市场上最好的电力柔性铠装控制电缆。为了确保所有Relemac柔性电源控制电缆(以及我们的其他电缆)符合最高质量标准，我们在自己最先进的实验室中对它们进行了一系列严格的测试。此外，我们的每根控制电缆在生产时都经过检查和检验。这使我们能够在问题出现在我们尊贵的客户面前之前发现问题。

TYPICAL APPLICATION :- The control cables that we provide to our customers are commonly used in a variety of industrial power or control circuits. These are used for conveying controlled electrical signals to various devices. Our high-quality control cables are suitable for installation and use in cable trays, conduits, cable ducts, and can also be used in underground buries and raceways. They are also suitable for outdoor locations such as power and switching stations and relays, industrial plants, local distribution systems, construction, manufacturing, commercial buildings, steel plants, various types of refineries, cement plants, chemical plants power plants, and other similar locations. They can also be used for signalling network of railways, subways, and the like.
典型应用:-我们为客户提供的控制电缆通常用于各种工业电源或控制电路。这些用于向各种设备传送受控的电信号。我们的高质量控制电缆适用于电缆槽、导管、电缆管道的安装和使用，也可用于地下埋设和电缆管道。它们也适用于户外场所，如电力和开关站和继电器、工厂、本地配电系统、建筑、制造、商业建筑、钢铁厂、各种类型的炼油厂、水泥厂、化工厂、发电厂和其他类似场所。它们也可以用于铁路、地铁等的信号网络。

Call or contact us today to discuss your specific , Flexible Multicore Power Control cables needs. We are here to help.
请立即致电或联系我们，讨论您对柔性多芯电力控制电缆的具体需求。我们是来帮忙的。

Technical Details技术细节

1.Copper Conductor 1.5 sq.mm, PVC Insulated Unarmoured/ Armoured PVC Sheathed Control Cables
2.Copper Conductor 2.5 sq.mm, PVC Insulated Unarmoured/ Armoured PVC Sheathed Control Cables
1.1.5平方毫米铜芯聚氯乙烯绝缘非铠装/铠装聚氯乙烯护套控制电缆
2.铜导线2.5平方毫米，聚氯乙烯绝缘非铠装/铠装聚氯乙烯护套控制电缆
